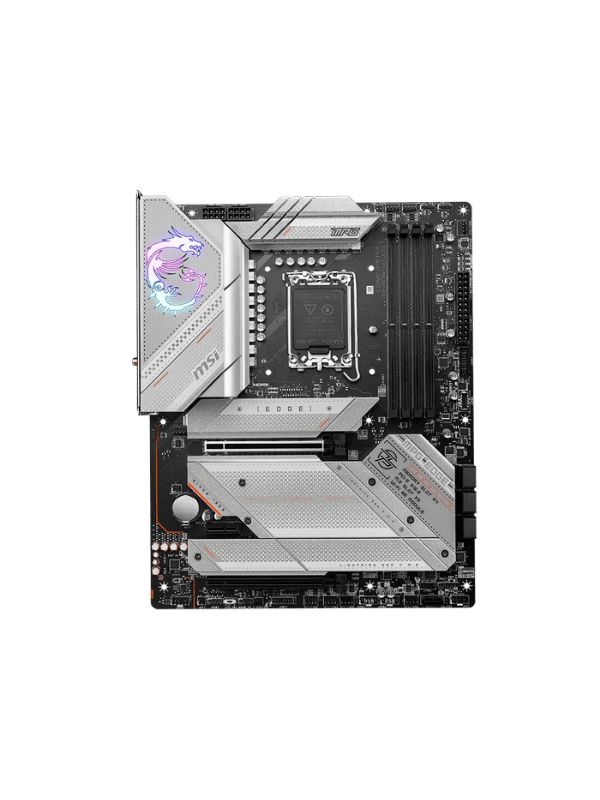

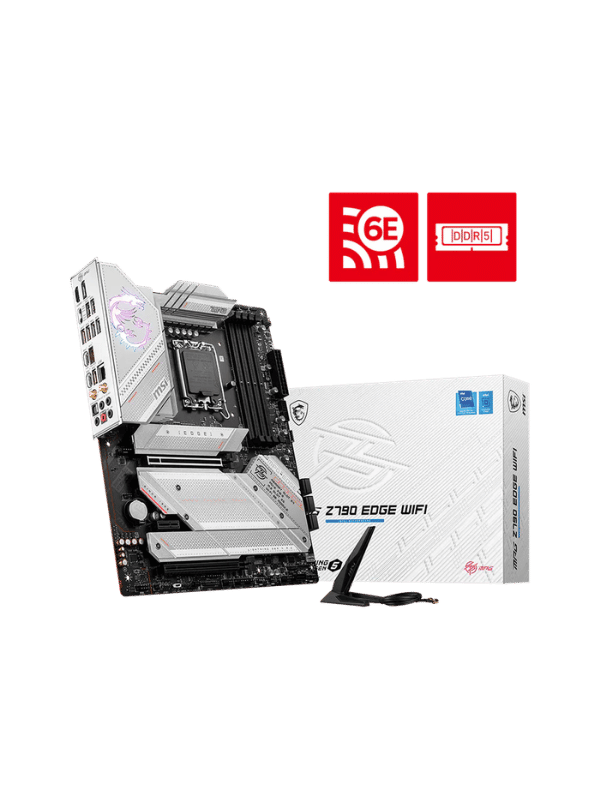

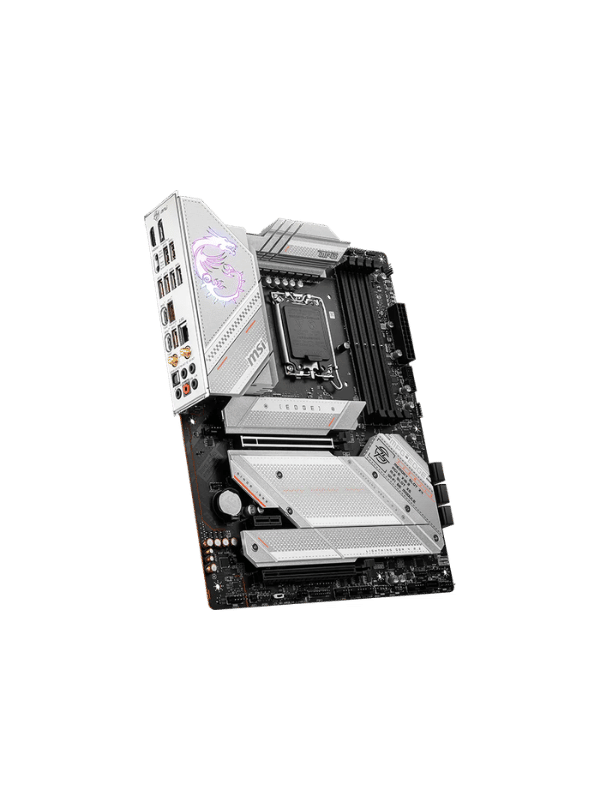

MSI MPG Z790 EDGE WIFI DDR5 Motherboard

We confirm every order on WhatsApp.

Official warranty
Delivery across Lebanon
Pick up in Byblos
In-store support

MSI MPG Z790 EDGE WIFI DDR5 Motherboard $249

Tech specs

Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Chipset: INTEL Z790
CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors · LGA 1700
Memory: 4x DDR5, Maximum Memory Capacity 256GB · Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz · 1DPC 2R Max speed up to 6600+ MHz · 2DPC 1R Max speed up to 6400+ MHz · 2DPC 2R Max speed up to 5600+ MHz · Supports Intel® XMP3.0 OC · Supports Dual-Controller Dual-Channel mode · Supports non-ECC, un-buffered memory
Onboard Graphics: 1x HDMI™ · Support HDMI™ 2.1, maximum resolution of 4K 60Hz* · 1x DisplayPort · Support DP 1.4, maximum resolution of 8K 60Hz* · Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot: 2x PCI-E x16 slot · 1x PCI-E x1 slot · PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) · PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) · PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio: Realtek® ALC4080 Codec · 7.1-Channel USB High Performance Audio · Supports up to 32-Bit/384 kHz playback on front panel
Storage: 5x M.2 · M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices · M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices · M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices · Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices · SATA_A1~A2 do not support RAID function.
USB: 4x USB 2.0 (Front) · 4x USB 5Gbps Type A (Rear) · 2x USB 5Gbps Type A (Front) · 4x USB 10Gbps Type A (Rear) · 1x USB 10Gbps Type C (Rear) · 1x USB 10Gbps Type C (Front) · 1x USB 20Gbps Type C (Rear)
LAN: Intel® 2.5Gbps LAN
Internal IO: 1x Power Connector(ATX_PWR) · 2x Power Connector(CPU_PWR) · 1x CPU Fan · 1x Pump Fan · 6x System Fan · 2x Front Panel (JFP) · 1x Chassis Intrusion (JCI) · 1x Front Audio (JAUD) · 1x Tuning Controller connector(JDASH) · 3x Addressable V2 RGB LED connector (JARGB_V2)
Wireless LAN & Bluetooth: Intel® Wi-Fi 6E · The Wireless module is pre-installed in the M.2 (Key-E) slot · Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps · Supports 802.11 a/ b/ g/ n/ ac/ ax · Supports Bluetooth® 5.3**, FIPS, FISMA · Wi-Fi 6E 6GHz may depend on every country’s regulations and will…
LED Feature: 4x EZ Debug LED · 1x EZ LED Control switch

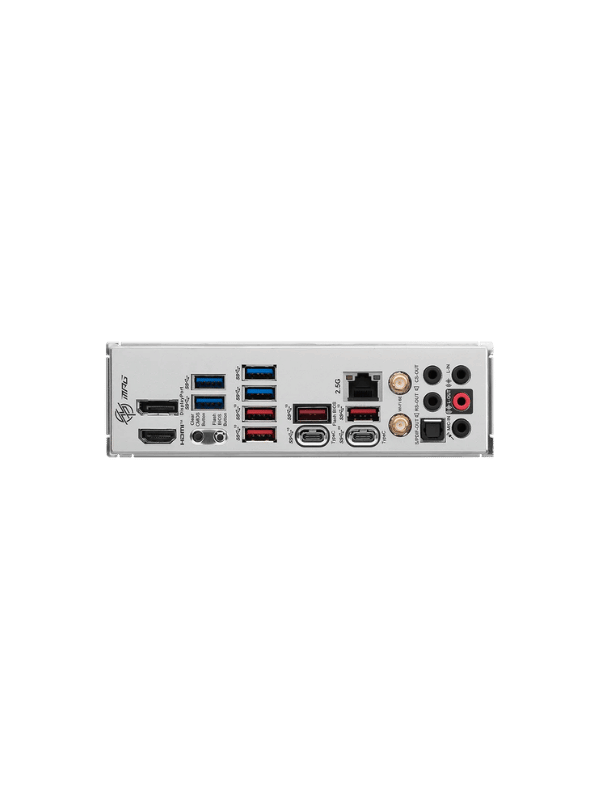

Back Panel Ports: Display Port · USB 5 Gbps (Type-A) · USB 10Gbps (Type-A) · 2.5G LAN · Wi-Fi / Bluetooth · Audio Connectors · HDMI™ · Clear CMOS / Flash BIOS · USB 10Gbps (Type-A) · USB 10Gbps (Type-C) · USB 20Gbps (Type-C) · Optical S/PDIF Out
Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info: ATX · 243.84mmx304.8mm
