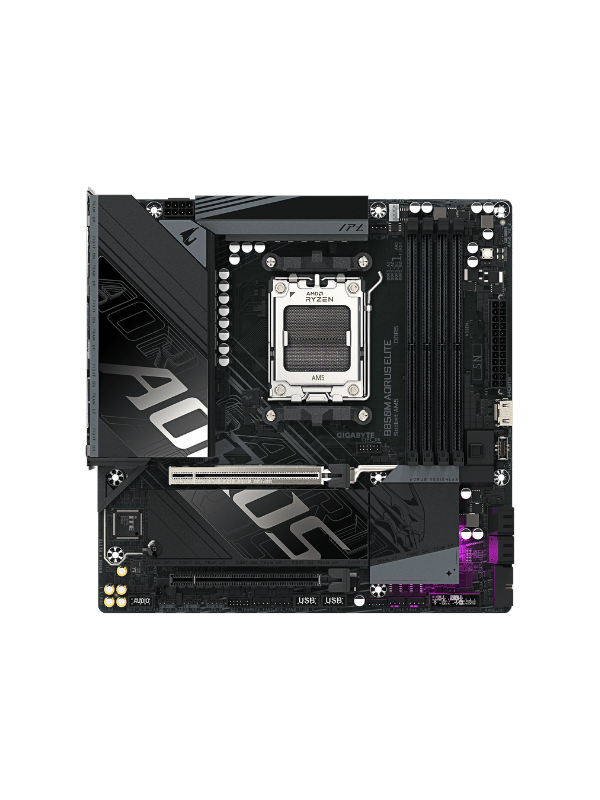

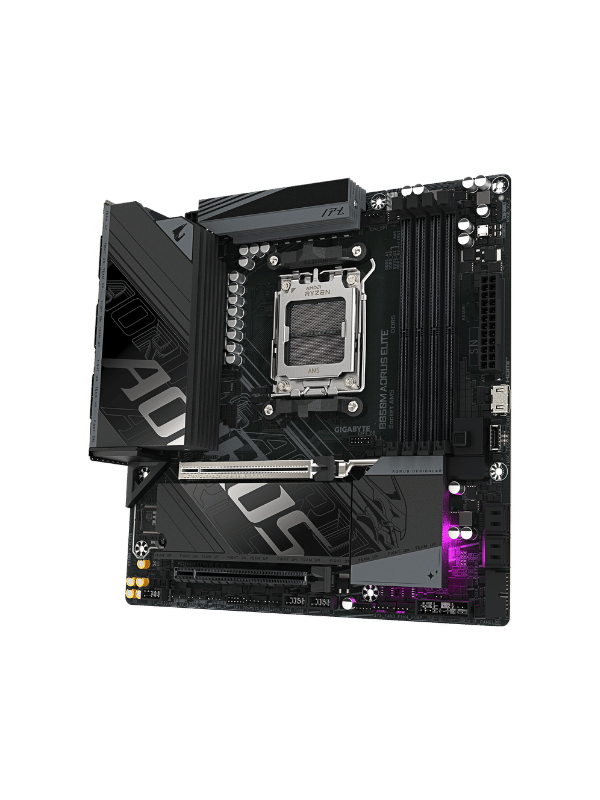

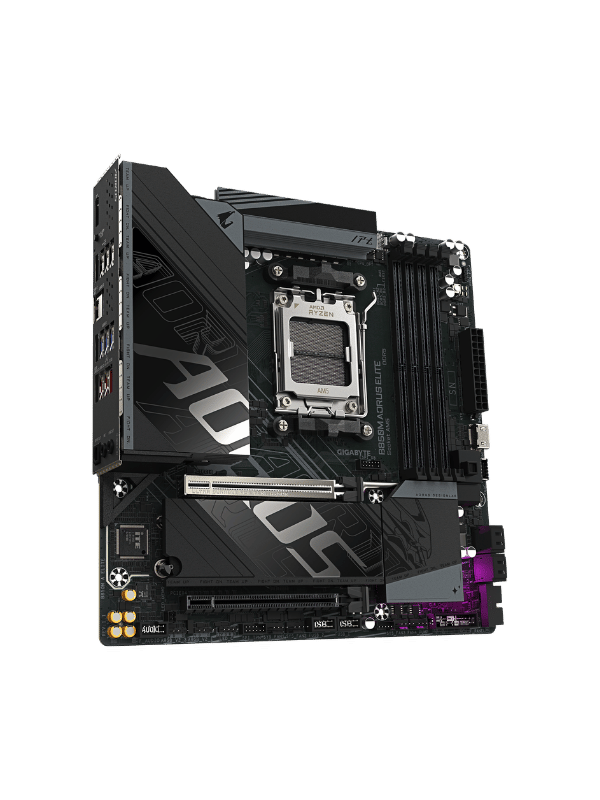

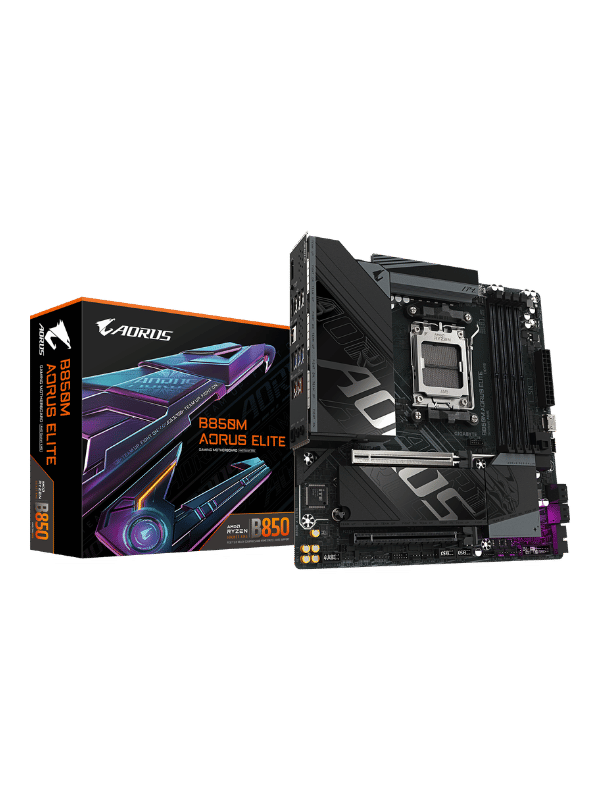

GIGABYTE B850M AORUS ELITE Motherboard
$192
We confirm every order on WhatsApp.
- Official warranty
- Delivery across Lebanon
- Pick up in Byblos
- In-store support
GIGABYTE B850M AORUS ELITE Motherboard
$192
Tech specs
- X3D Turbo Mode
- Unleash new era gaming performance
- AMD Socket AM5
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Dual Channel DDR5
- 4*DIMMs with AMD EXPO™Memory Module Support
- EZ-Latch Plus
- PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click
- M.2 heatsinks with screwless design
- Sensor Panel Link
- Onboard video port for hassle-free in-chassis panel setup
- Friendly UI
- Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage
- 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal
- VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking
- 2.5GbE LAN
- Extended Connectivity
- HDMI,Displayport
- PCIe UD Slot
- PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
- AMD Socket AM5, support for
- AMD Ryzen™ 9000 Series Processors/ · AMD Ryzen™ 8000 Series Processors/ · AMD Ryzen™ 7000 Series Processors · (Go to GIGABYTE’s website for the latest CPU support list.) · Chipset: AMD B850
- Memory
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory · Dual channel memory architecture · Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules · Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP)…
- Onboard Graphics
- Integrated Graphics Processor with AMD Radeon™ Graphics support: · 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version and HDR.- 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz* Support for HDMI 1.4 version.(Graphics…
- Audio
- Realtek® ALC1220 CODEC · The back panel line out jack supports DSD audio.High Definition Audio · 2/4/5.1/7.1-channel · You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: · AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode · AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode · AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- Storage Interface
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: · AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode · The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
- Chipset
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) · The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
- CPU

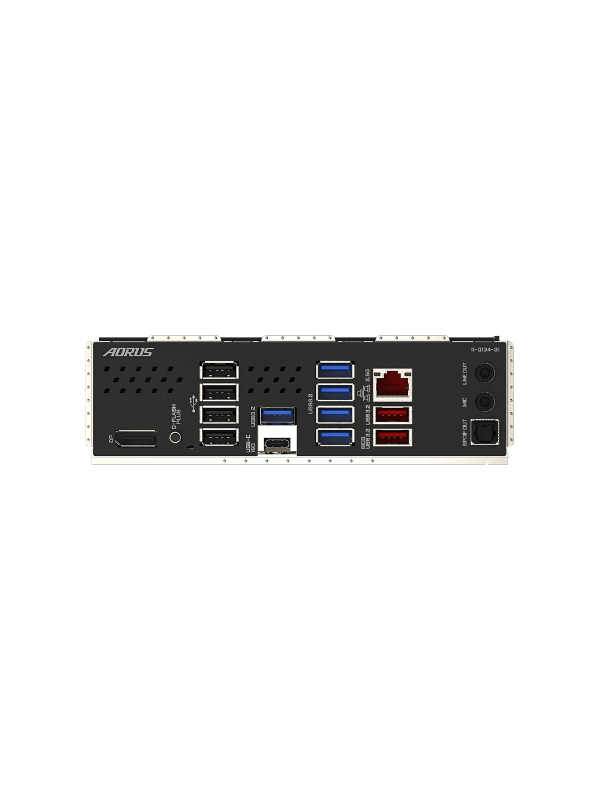

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support · 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- CPU+USB 2.0 Hub
- 4 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports on the back panel
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector · 1 x 8-pin ATX 12V power connector · 1 x CPU fan header · 1 x CPU fan/water cooling pump header · 3 x system fan headers · 1 x system fan/water cooling pump header · 3 x addressable RGB Gen2 LED strip headers
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection · Temperature detection · Fan speed detection · Water cooling flow rate detection · Fan fail warning · Fan speed control · Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
- BIOS
- 1 x 256 Mbit flash · Use of licensed AMI UEFI BIOS · PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for GIGABYTE Control Center (GCC) · Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash · Support for Q-Flash Plus
- Bundled Software
- Norton® Internet Security (OEM version) · LAN bandwidth management software
- Operating System
- Support for Windows 11 64-bit · Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
